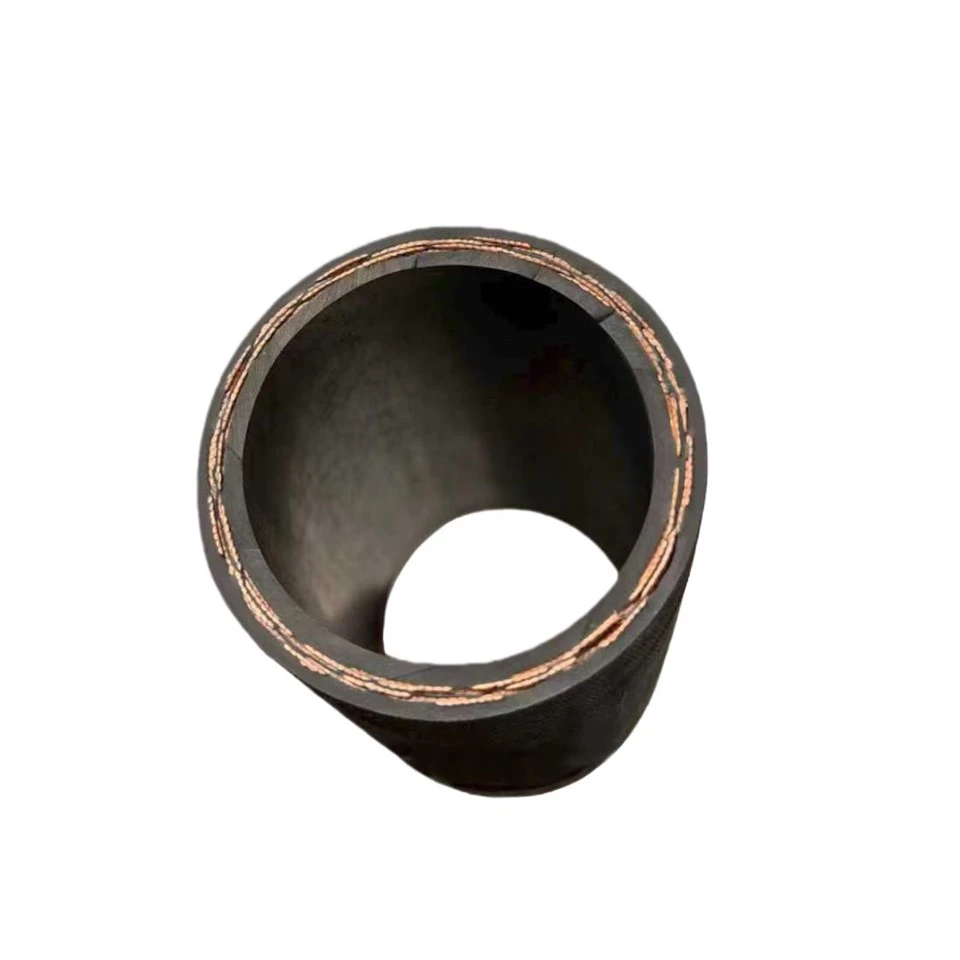

SAE 100 R3 EN 854
SAE 100R3 is a standard medium and low pressure hydraulic hose with two layers of woven textile cord as the reinforcing layer. It is renowned for its excellent flexibility, lightweight and economy, and is one of the most widely used types of hydraulic hoses in many industrial fields.
- Product Introduction
SAE 100R3 is a medium and low pressure hydraulic hose standard with two layers woven textile cord as the reinforcement. It is well known for good flexibility and light weight and economy, and is one of the most common types of hydraulic hoses in a variety of industrial fields. This product is manufactured strictly in accordance with the SAE J343 standard to ensure reliability and safety under the stated working conditions.
Product Structure And Features
The SAE 100R3 hose incorporates a conventional three layer construction design that provides a balance of performance, cost and flexibility.
Inner rubber layer
The synthetic rubber is oil resistant and wear resistant. It has excellent compatibility with petroleum-based hydraulic oil and lubricating oil and most water-ethylene glycol hydraulic fluids . Effectively prevent the hose from being eroded by the medium and cause failure.
Reinforcing layer
A braided layer of two layers high strength synthetic textile fiber. This is the heart of the R3 type and gives the necessary pressure resistance and impact resistance.. This is the heart of the R3 type and gives the necessary pressure resistance and impact resistance.
Outer rubber layer
It is made of wear-resistant and weather-resistant synthetic rubber, and can protect the reinforcing layer from mechanical wear, environmental factors (such as ultraviolet rays and ozone) and moisture erosion, thereby extending its service life.
Core Features
Outstanding flexibility
The single layer woven structure has a small bending radius and easy installation, which is suitable for the application that require frequent movement or limited space.
01
Lightweight design
It is less heavier than steel wire reinforced hoses thus reducing the weight of the whole equipment.
02
Economically efficient
It meets the needs of medium and low voltage applications with a very competitive cost advantage.
03
Good medium compatibility
Suitable for many common hydraulic oils.
04
Strong durability
The outer rubber layer is wear-resistant for a long service life in harsh industrial environments.
05
Technical Parameters And Standards
Applicable standard
SAE 100R3 (conforming to SAE J343 standard)
Reinforcing layer type
Two-layer textile fiber weaving
Main Application Scope
SAE 100R3 hoses are widely used in many mechanical equipments that require medium and low pressure and good flexibility such as
Industrial machinery
Oil return pipes and oil drain pipes for hydraulic systems in machine tools, injection molding machines, presses etc.
Mobile equipment
Hydraulic systems of medium and low pressure for agricultural, garden and small construction machines.
Vehicle industry
Low pressure tubing for hydraulic steering systems on tractors and trucks, clutch assist systems and more.
General industry
Pneumatic circuit lines and other industrial equipments used as fluid conveying pipelines for lubricating oil circuits.
