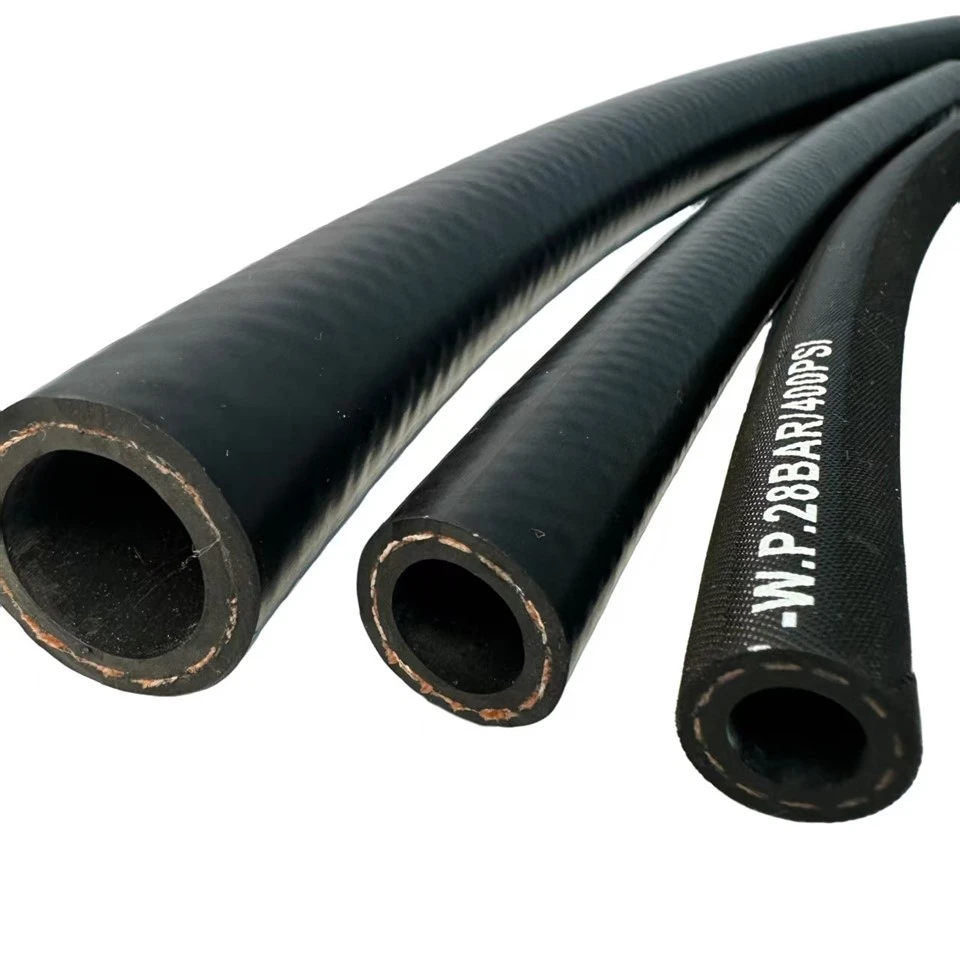

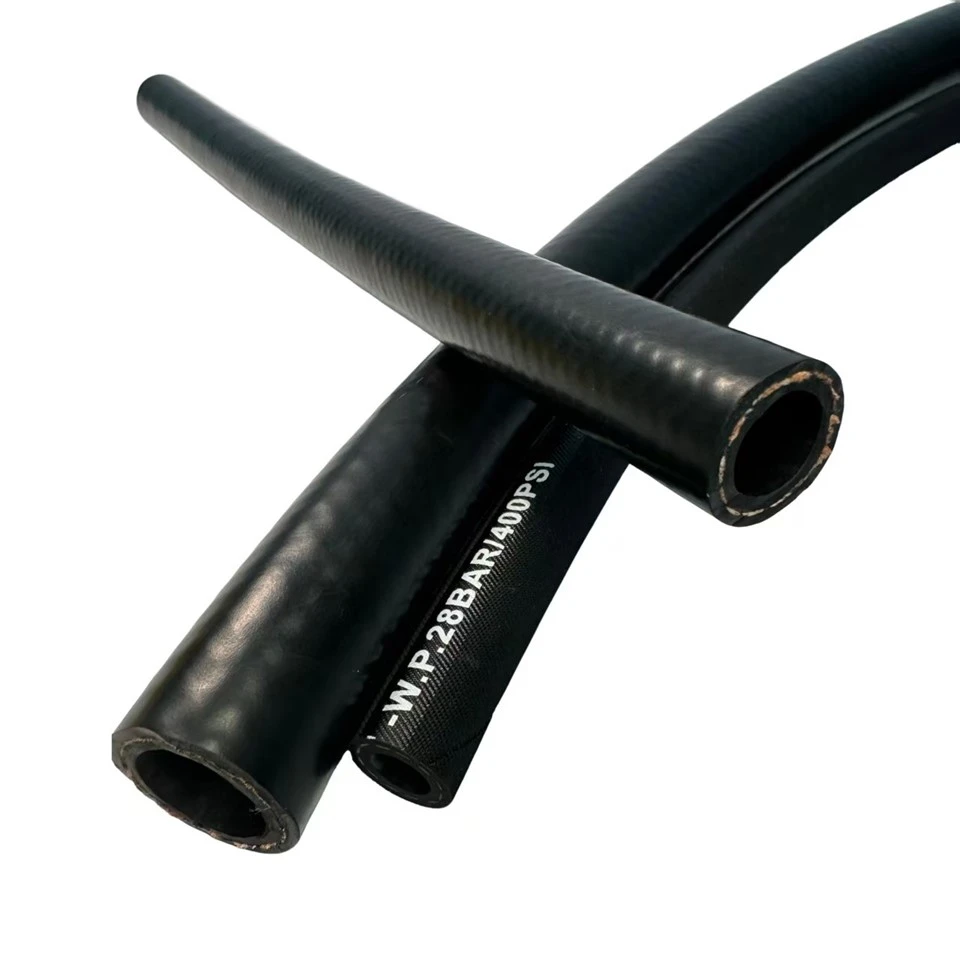

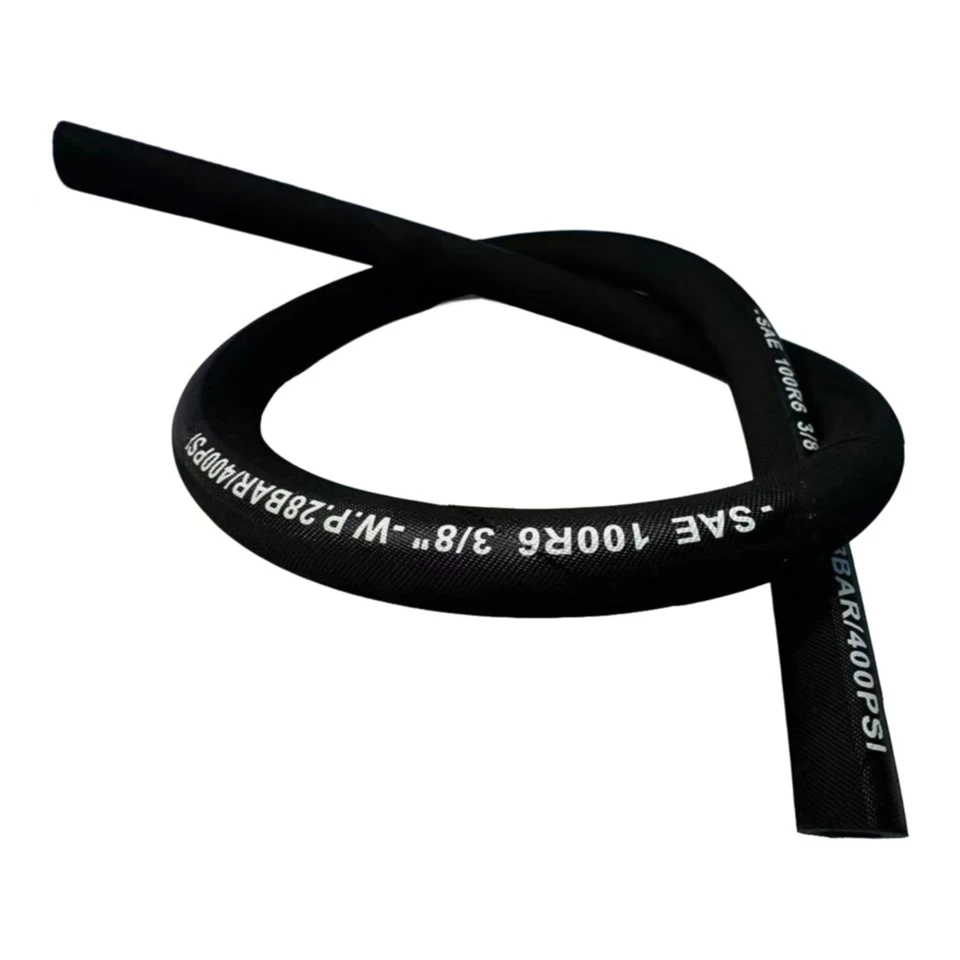

SAE 100 R6 / EN 854 1TE Textile Braided Hydraulic Hose

SAE 100 R6 hydraulic hose, also designated EN 854 1TE, is a single textile braided hydraulic line built for medium-pressure hydraulic circuits. Unlike steel wire reinforced hydraulic hoses, this hose uses high-tensile synthetic textile fibre as reinforcement. It is lighter, softer and easier to route in tight spaces on mobile and compact hydraulic equipment.

It is engineered for petroleum-based hydraulic fluids. It is widely selected by hydraulic fitters, equipment repair shops and machinery OEMs for auxiliary hydraulic circuits where weight and flexibility matter more than extreme high pressure.

Hose Construction

Inner Tube: Oil resistant synthetic rubber, stable against mineral hydraulic oil, prevents swelling and degradation with long term oil contact

Reinforcement: One layer high tensile textile fibre braid

Outer Cover: Abrasion and weather resistant synthetic rubber, good ozone and UV resistance for outdoor working conditions

Working Temperature: -40°C ~ +100°C

Key Benefits

✅ Light weight textile braid construction, easier handling and installation than wire braided hydraulic hose

✅ Excellent flexibility with small minimum bend radius, ideal for confined hydraulic routing

✅ Oil resistant inner compound for mineral based hydraulic oil

✅ Tough outer rubber cover resists abrasion, sunlight and weather aging

✅ Dual standard SAE 100 R6 / EN 854 1TE, compatible with standard hydraulic fittings

✅ Stable performance across cold climate and normal high temperature working cycles

Typical Applications

This textile reinforced hydraulic hose is widely used for medium pressure hydraulic lines. Common applications: agricultural tractors & farm equipment, forklift hydraulics, small excavators, hydraulic power packs, lifting platforms, truck tailgate hydraulics and auxiliary hydraulic circuits on mobile machinery.

Important note: This hose is designed for petroleum-based hydraulic fluids. It is not suitable for fuel, solvent or aggressive water-based hydraulic media unless custom inner rubber material is requested.

Frequently Asked Questions

Q: What is the difference between SAE 100 R6 and SAE 100 R2 hydraulic hose?

A: SAE100 R6 uses textile fibre braid reinforcement for medium pressure service, it is lighter and more flexible. SAE100 R2 is steel wire braided, rated for much higher working pressure. They cannot be swapped for high pressure hydraulic lines.

Q: Can you supply finished SAE 100 R6 hose assemblies crimped with fittings?

A: Yes. We provide custom cut-to-length hoses and crimped hose assemblies with carbon steel or stainless steel hydraulic fittings. Send us your fitting drawing or specification.
