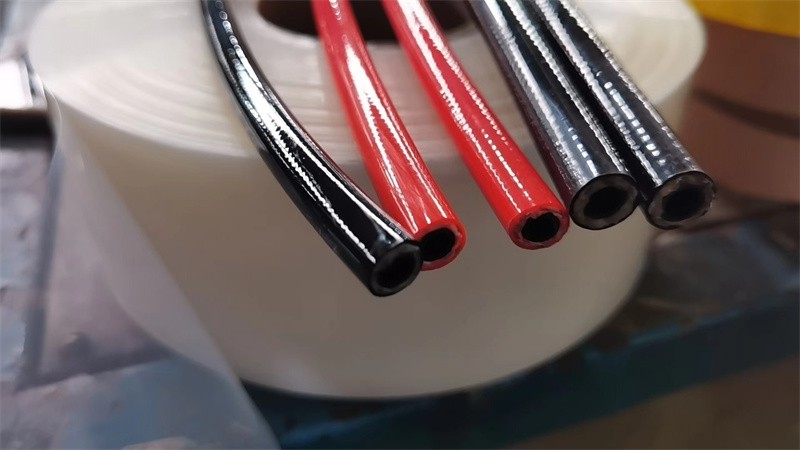

SAE 100 R7R8
SAE 100 R7 and R8 are medium and high-pressure hydraulic hoses reinforced with one or two layers of high-strength steel wire braided layers. They are one of the most widely used and versatile hydraulic hose series in the industrial field, renowned for their excellent pressure resistance, pulse fatigue resistance and durability.
- Product Introduction
SAE 100 R7 and R8 are medium and high-pressure hydraulic hoses reinforced with one or two layers of high-strength steel wire braided layers. They are one of the most widely used and versatile hydraulic hose series in the industrial field, renowned for their excellent pressure resistance, pulse fatigue resistance and durability. These two types of hoses strictly comply with the SAE J343 standard and provide reliable connection solutions for various demanding industrial and mobile equipment hydraulic systems.
Product Structure And Features
SAE 100 R7 and R8 have a similar three-layer structure, but the design differences of the enhancement layer determine their different performance grades.
Inner rubber layer
Made of oil-resistant and wear-resistant synthetic rubber (usually nitrile rubber), it has excellent compatibility with petroleum-based hydraulic oil, lubricating oil and bio-oil, ensuring the purity and smoothness of fluid transportation.
Enhancement Layer (Core difference)
SAE 100 R7
It adopts a single-layer high-strength steel wire braided layer. This structure offers an excellent balance between pressure resistance and flexibility.
Enhancement Layer (Core difference)
SAE 100 R8
It adopts a two-layer high-strength steel wire braided layer. The double-layer braided structure endows the hose with a higher burst pressure and stronger pulse resistance, making it suitable for higher working pressures and more demanding working conditions.
Outer rubber layer
Made of synthetic rubber that is wear-resistant, weather-resistant and ozone-resistant. This outer layer can withstand harsh environmental conditions, such as friction with equipment and rocks, as well as erosion by ultraviolet rays and ozone, providing the best protection for the internal steel wire reinforcing layer.
Core Features
High pressure resistance performance
Steel wire braided reinforcement provides a pressure-bearing capacity far exceeding that of fiber braided hoses. R8 is particularly suitable for high-pressure applications.
01
Outstanding anti-pulse performance
The steel wire frame can effectively absorb the pressure fluctuations and impacts of the hydraulic system, thereby extending its service life.
02
Excellent flexibility and bending life
Despite being reinforced by steel wire, its precise braided structure still ensures good flexibility.
03
Strong durability
The wear-resistant outer rubber layer ensures a long service life in complex industrial environments.
04
Wide range of sizes
We offer various inner diameter sizes from small to large to meet different flow requirements.
05
Technical Parameters And Standards
Applicable standard
Complies with the requirements for R7 and R8 types in SAE J343 standard.
Reinforcing layer types
R7 (1 layer of steel wire braided), R8 (2 layers of steel wire braided).
Temperature range
Operating temperature: -40°C to +100°C (-40°F to +212°F)
Applicable media
Petroleum-based hydraulic oil, lubricating oil, biodegradable oil, water glycol, etc.
Main Application Scope
SAE 100 R7 / R8 hoses are the "main force" in the following fields:
Construction machinery
main hydraulic systems, booms and slewing pipelines of equipment such as excavators, loaders, bulldozers and cranes.
Industrial equipment
high-pressure hydraulic systems in factories such as injection molding machines, presses, machine tools, and metallurgical equipment.
Agricultural machinery
Hydraulic lifting systems, steering systems and other high-pressure actuators for tractors and combine harvesters.
Mining machinery
Rock drills, underground equipment and other applications that require extremely high pressure resistance and wear resistance.
Vehicle industry
Lifting hydraulic systems for dump trucks and sanitation vehicles.
