High-Temperature Steel Wire Braided Steam Hose
High-Temperature Steel Wire Braided Steam Hose Reference Standards : HG 3036: ISO6134, GB7548 Product Introduction Our High-Temperature Steel Wire Braided Steam Hose is engineered for demanding high-temperature applications, safely delivering saturated steam and hot water. It is the ideal...
- Product Introduction

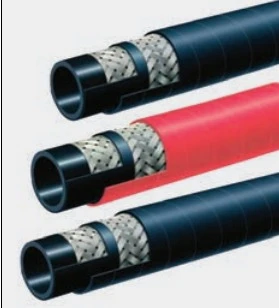

High-Temperature Steel Wire Braided Steam Hose
Reference Standards: HG 3036: ISO6134, GB7548
Product Introduction
Our High-Temperature Steel Wire Braided Steam Hose is engineered for demanding high-temperature applications, safely delivering saturated steam and hot water. It is the ideal flexible piping solution for thermal machinery and equipment.
Key Advantages
Exceptional Heat Resistance
Robust, Safety-Engineered Construction
High Flexibility & Hassle-Free Installation
Long-Lasting Durability & Aging Resistance
Applications
Perfect for flexible piping in steam cleaners, steam hammers, plate vulcanizers, injection molding machines, and other thermal equipment. Widely used in chemical, printing and dyeing, rubber processing, food processing, and other industries for steam transfer systems.
📊 Specification Parameters
| Hose I.D | Reference O.D | Working Pressure (W.P) | Burst Pressure (B.P) | Bending Radius (B.R) | |
| inch | mm | mm | mpa / psi | mpa / psi | mm |
| 1-Ply Steel Wire Braided | |||||
| 3/8 | 6.4±0.5 | 17.8±0.5 | 1.0 / 150 | 10 / 1500 | 130 |
| 1/2 | 13.5±0.5 | 21.0±0.5 | 1.0 / 150 | 10 / 1500 | 180 |
| 5/8 | 15.8±0.5 | 24.4±0.5 | 1.0 / 150 | 10 / 1500 | 205 |
| 3/4 | 19.0±0.5 | 28.5±0.5 | 1.0 / 150 | 10 / 1500 | 240 |
| 7/8 | 22.0±0.5 | 32.0±0.5 | 1.0 / 150 | 10 / 1500 | 280 |
| 1 | 25.2±0.5 | 34.5±0.5 | 1.0 / 150 | 10 / 1500 | 300 |
| 1-1/4 | 31.8±0.5 | 42.0±0.5 | 1.0 / 150 | 10 / 1500 | 420 |
| 1-1/2 | 38.1±0.6 | 48.5±0.6 | 1.0 / 150 | 10 / 1500 | 500 |
| 1-3/4 | 44.5±0.8 | 55.0±0.8 | 1.0 / 150 | 10 / 1500 | 500 |
| 2 | 50.8±0.8 | 62.0±0.8 | 1.0 / 150 | 10 / 1500 | 630 |
| 2-1/2 | 63.5±0.8 | 76.0±0.8 | 1.0 / 150 | 10 / 1500 | 700 |
| 2-Ply Steel Wire Braided | |||||
| 3/8 | 6.4±0.5 | 19.5±0.5 | 2.0 / 300 | 20 / 3000 | 130 |
| 1/2 | 13.5±0.5 | 22.8±0.5 | 2.0 / 300 | 20 / 3000 | 180 |
| 5/8 | 15.8±0.5 | 26.2±0.5 | 2.0 / 300 | 20 / 3000 | 205 |
| 3/4 | 19.0±0.5 | 29.6±0.5 | 2.0 / 300 | 20 / 3000 | 240 |
| 7/8 | 22.0±0.5 | 32.9±0.5 | 2.0 / 300 | 20 / 3000 | 280 |
| 1 | 25.2±0.5 | 36.2±0.5 | 2.0 / 300 | 20 / 3000 | 300 |
| 1-1/4 | 31.8±0.6 | 43.3±0.6 | 2.0 / 300 | 20 / 3000 | 420 |
| 1-1/2 | 38.1±0.6 | 49.9±0.6 | 2.0 / 300 | 20 / 3000 | 500 |
| 1-3/4 | 44.5±0.8 | 57.1±0.8 | 2.0 / 300 | 20 / 3000 | 500 |
| 2 | 50.8±0.8 | 63.1±0.8 | 2.0 / 300 | 20 / 3000 | 630 |
| 2-1/2 | 63.5±0.8 | 76.3±0.8 | 2.0 / 300 | 20 / 3000 | 700 |
📞 Contact Us
If you need more technical details or custom specifications please do not hesitate to contact our sales team. Our aim is to offer you professional solutions for fluid transfer tailored to your needs.
