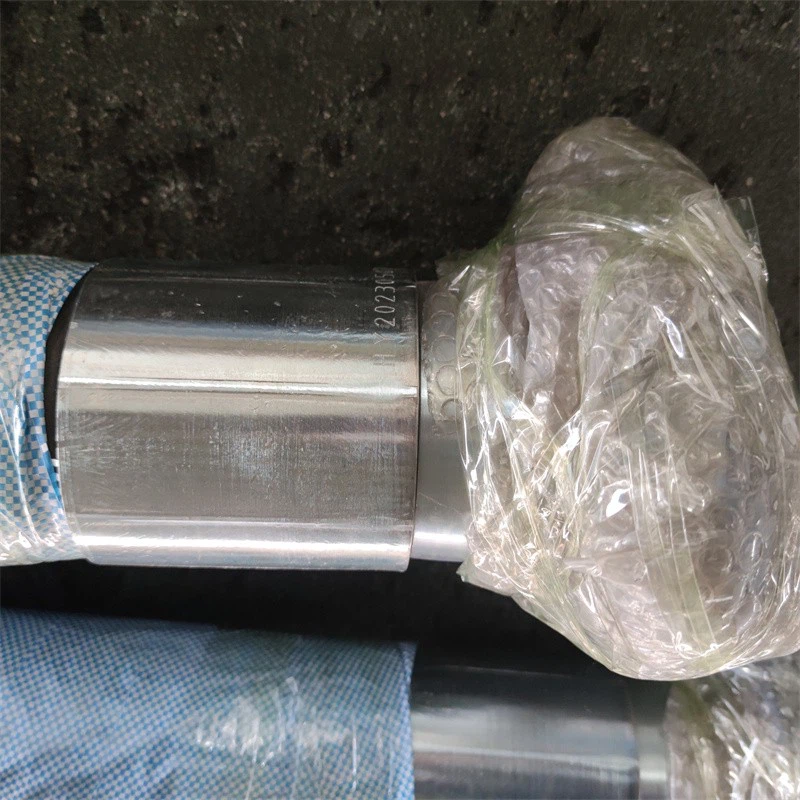

Oil Extraction Hose
Oil drilling rubber hoses are key flexible connection components in oil and gas drilling operations, specially designed for transporting drilling fluids (mud) in extremely high-pressure, high-wear and corrosive environments. It is hailed as the "artery" of the drilling system, connecting key equipment such as drilling pumps, risers and water taps.
- Product Introduction
Oil drilling rubber hoses are important flexible connection parts of oil and gas drilling operations, specially designed to transport drilling fluids (mud) in extremely high pressure, high wear and corrosive environment. It is called the "artery" of the drilling system, connecting important equipment like drilling pumps, risers and water taps. Its performance directly influences the efficiency and safety of drilling operations.
Product Structure And Features
The drilling rubber hose is composed of multi-layer composite reinforced structure, which guarantees excellent durability under high pressure, pulse and harsh working conditions.
Inner rubber layer
It is made of synthetic rubber which has high wear resistance, oil resistance and mud corrosion resistance. It can effectively resist the erosion of abrasive solid particles in the drilling fluid, and ensure the purity and smoothness of medium transportation.
Inner rubber protective layer
Provides an additional barrier of tear resistance that enhances the seal and integrity of the inner rubber.
Middle adhesive layer
It can be used as a binding transition layer, which is effective in integrating the inner layer and the reinforcing layer and sharing part of the stress.
Steel wire winding layer
Core reinforcement structure. It is precisely wound with several layers of high-strength steel wires, which provide extremely high burst pressure and excellent resistance to pulse fatigue, and is the key to withstand the high-pressure output of the drilling pump.
Outer rubber layer
The synthetic rubber used is wear-resistant, weather resistant and ozone-aging resistant and protects the internal reinforcing layer from physical damage, atmospheric aging and erosion by corrosive gases such as hydrogen sulfide.
Core Features
Ultra-high pressure resistance
Especially designed for high pressure working conditions like cementing fracturing and drilling in oil fields.
Outstanding pulse life
The steel wire winding structure can effectively absorb and resist the continuous pressure pulse generated by the drilling pump.
Excellent flexibility and flex resistance
It can compensate for the derrick's relative motion with respect to the equipment, which helps in installation and adjustment.
Comprehensive medium compatibility
For water based mud, oil based mud, crude oil, horizontal well fracturing fluid, normal temperature water etc.
Enhanced environmental tolerance
The specially formulated product resists the erosion of hydrogen sulfide and can be used in harsh geological environments.
Main Application Scope
This product is widely used in all main links of oil drilling and downhole operations:
Hose
It is used as a drilling hose to connect the top of the derrick riser with the vertically movable faucet, and is an indispensable flexible connector in the drilling fluid circulation system.
01
Pump discharge pipeline
It is installed between the drilling pump and the riser and is used to compensate the errors of installation, absorb vibrations and pulses and to protect fixed pipelines and equipment.
02
Mud transportation
Transport water based or oil based mud pumped out from rotary drilling equipment under high pressure conditions with an aniline point not less than 66°C.
03
Oilfield downhole operations
It is used to transport high-pressure media such as cement slurry, fracturing fluid, crude oil and return materials in cementing, fracturing, well service and other operations.
04
Other fields
It is also suitable for high-pressure fluid transportation in fields such as petroleum geological exploration, small drilling RIGS and water conservancy coal mining.
05
